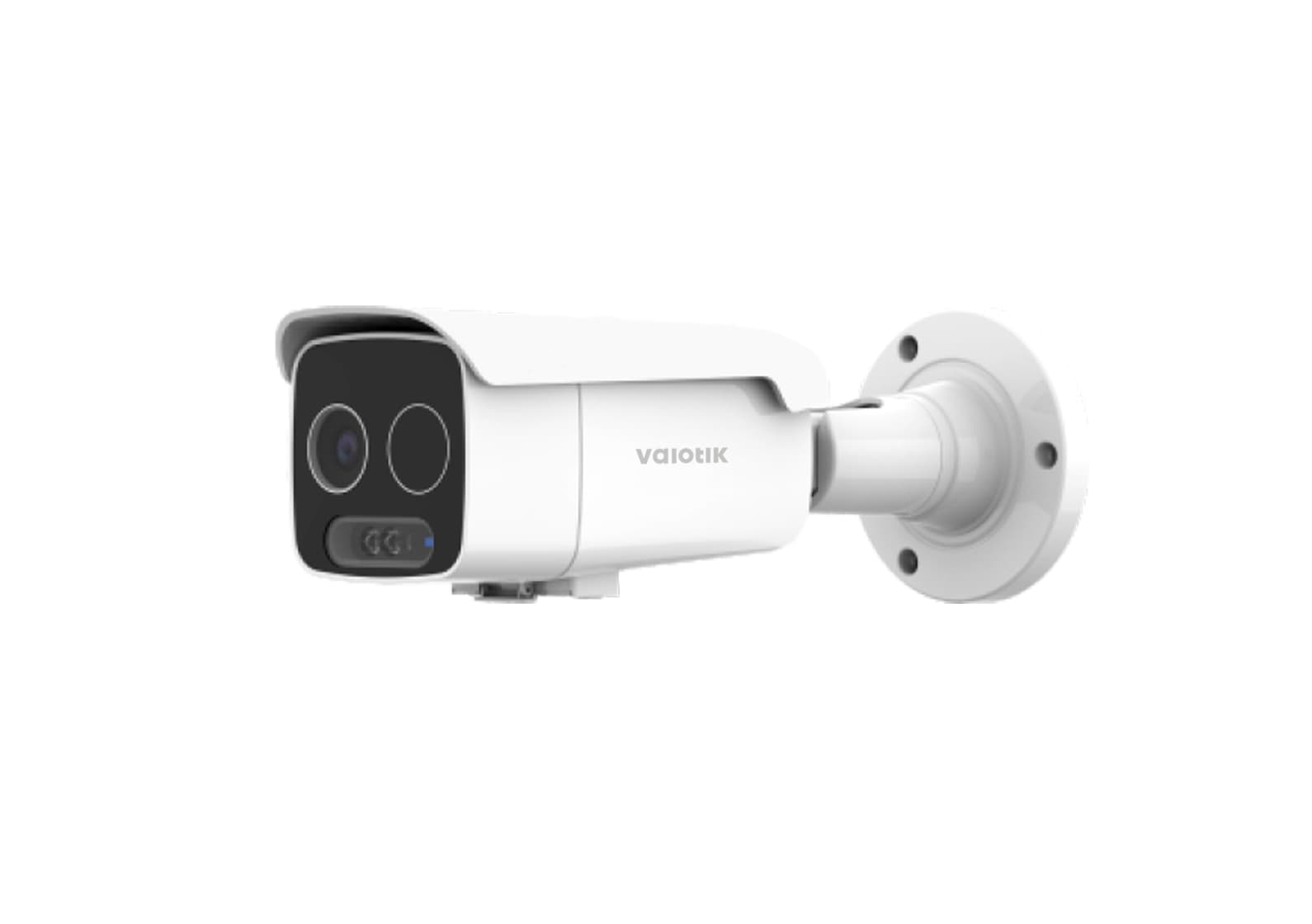

Dual Sensors Thermovisible Network Bullet Camera

Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 256×192
Pixel Interval 12μm
Response Waveband 8-14μm
NETD (Noise Equivalent Temperature Difference) ≤ 50 mk @ 25℃ F # 1.0, 25Hz
Lens (Focal Length) 3.2mm
IFOV 3.75 mrad
Field of View 56°x42°
Aperture F 1.1
Optical Module
Max. Image Resolution 5MP 2592(H)x1944(V)
Image Sensor 1/2.7″ Progressive Scan CMOS
Min. Illumination Color: 0.003 Lux @(F1.6, AGC ON), B/W: 0 @IR ON
Shutter Speed 1/5 s to 1/100,000 s
Lens (Focal Length) 3.6mm
Field of View Horizontal: 81°, Vertical: 57°, Diagonal: 108°
Day & Night IR cut filter with auto switch
Image Function
Bi-spectrum Image Fusion Fusion view of thermal view and overlaid details of the optical channel
Smart Function
Intelligent Analytics Optical:PID,LCD,PD/VD,SOD,CC,CD,QD,Heat MAP,RSD,FD
Thermal: PID,LCD,Fire detection, temperature exception alam
Temperature Measurement Gobal, 12 points, 12 areas, and 12 line).
Temperature Range -15 °C to + 150 °C (-5 °F to + 302°F)
Temperature Accuracy ± 8 °C (± 14.4 °F)
Fire Detection Dynamic fire point detection
IR Distance Up to 30 m
Main Stream Visible Light:
50Hz@25fps; 5MP(2592×1944),4MP(2592×1520),3MP(2304×1296),
1080P(1920×1080), 960P(1280*960),720P(1280×720)
60Hz@30fps; 5MP(2592×1944),4MP(2592×1520),3MP(2304×1296),
1080P(1920×1080), 960P(1280*960),720P(1280×720)
50Hz@25fps; 1280 × 720, 640 x 480
60Hz@30fps; 1280 × 720, 640 x 480
Sub-stream Visible Light:
50Hz@25fps; 720P(1280×720),VGA(640×480),QVGA(320×240)
60Hz@30fps; 720P(1280×720),VGA(640×480),QVGA(320×240)
50Hz@25fps; 640 x 480, 320×240
60Hz@30fps; 640 × 480, 320×240
Mobile Stream Visible Light:
50Hz@25fps; VGA(640×480),QVGA(320×240)
60Hz@30fps; VGA(640×480),QVGA(320×240)
50Hz@25fps; 320×240
60Hz@30fps; 320×240
Video Compression H.265/H.264/MJPEG
Audio Compression G.711u/G.711a
User/Host Level 10 users, 2 levels: Administrator,  User
Security Measures User authentication (ID and PW), HTTPS encryption, IP address filtering
Alarm Input 1-ch inputs
Alarm Output 1-ch outputs
Alarm Action SD recording/relay output/smart capture/FTP upload/email linkage
/audio alarm/Red & Blue flashing light
Audio Input 1-ch
Audio Output 1-ch outputs/ 1 Built-in speaker
Reset Yes
Communication Interface 1, RJ45 10M/100M self-adaptive Ethernet interface.
SD Memory Card Built-in micro SD card slot (up to 256 GB)
Analog Video Output(BNC) NA
Web Browser IE10/11
Safari  V12.1 above
Firefox V.52 above
Google chrome  V.57 above
Edge V.79 above
Menu language English, Russian,  German, Italian, French,  Portuguese, Spanish, Turkish, Japanese
Power 12 VDC ± 20%, PoE (802.3af)
Working Temperature/Humidity Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
Humidity: 90% or less
Protection Level IP67
Environment RoHS2.0
