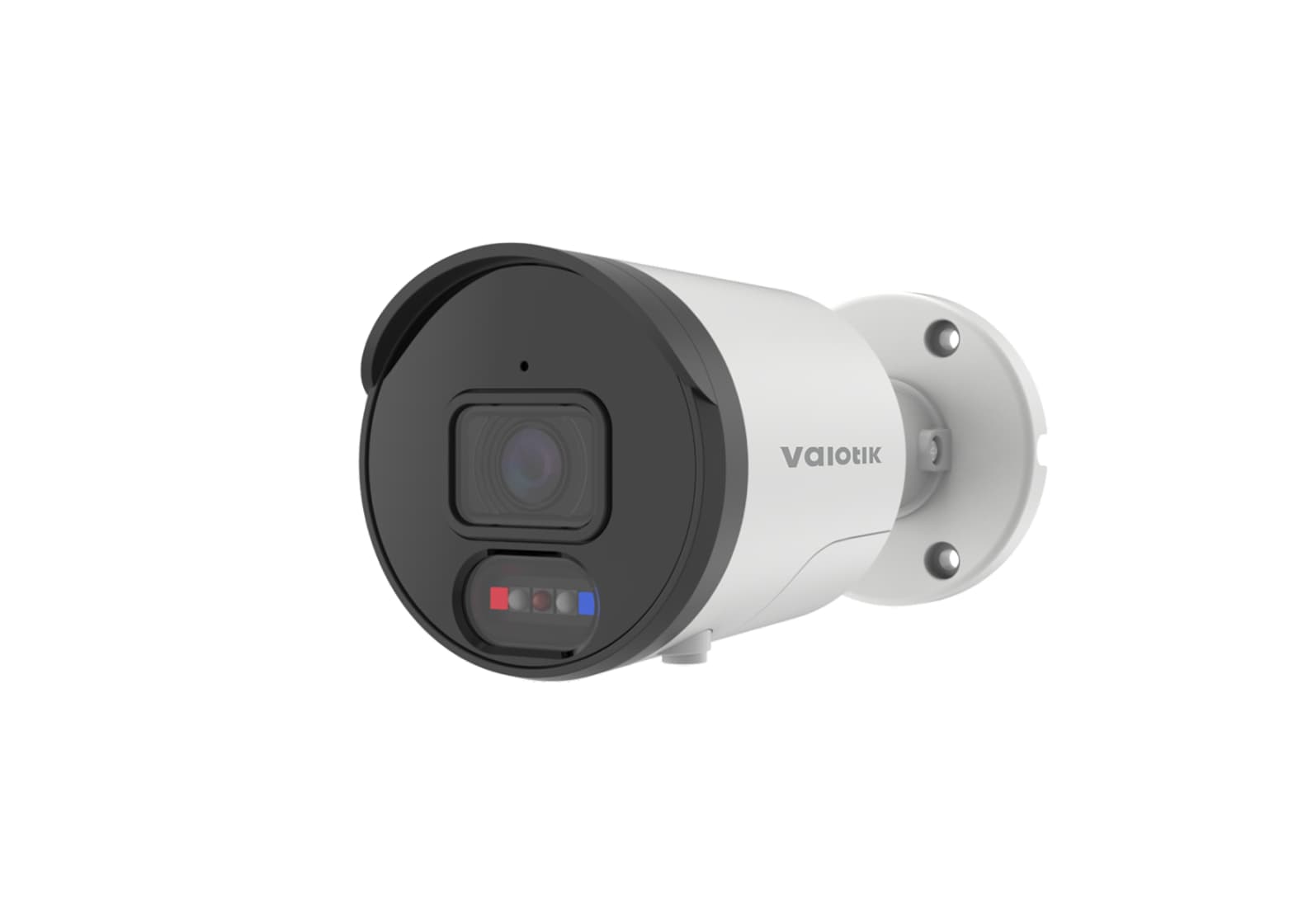

4MP IP Bullet Camera

Active Deterrence AI Full Color Range

Fixed 2.8/3.6 mm lens

PoE, Built-in microphone & Speaker

SD card slot, IP67

Imaging Device 1/3″
Effective Pixels

Min. Illumination


Color 0.0005 Lux

(AGC ON); B/W 0 lux @ IR ON

Lens Type/FocaI Length

Max. Aperture Ratio

2.8/3.6 mm
Angular Field of View Horizontal:77°, Vertical:42°, Diagonal: 90°

Horizontal:95°, Vertical:51°, Diagonal: 112°

Min. Object Distance 2m
Warm Light 2
Red Blue Light 2 (1 Red & 1 Blue)
IR Viewable Distance Up to 25m
Warm Light Viewable Distance Up to 20m
Wide Dynamic Range No
Image Setting Full Color Mode/Day&Night Mode/Schedule
White Balance Auto/Manual
Electronic Shutter Speed 1/5 – 1/20000s
On-Board Storage Micro SD slot, up to 256GB
Audio Built-in microphone &  Speaker
Hardware Reset Yes
Smart Feature Smart Motion Detection-Human & Vehicle (SMD) / Perimeter Intrusion Detection (PlD) / Line Crossing Detection(LCD)
Ethernet RJ45(10/100BASE-T)
Video Compression Format 1-1.265/14.264
Max. Resolution

Video Quality Adjustment

128Kbps — 4Mbps

Application Programming Interface

ONVIF (Profile S/G/T)
Operating Conditions -35 0 c—+60 0 c / < 95% RH
Ingress Protection IP67
Power CR: DC12V: max. 7.1W, Poe max. 8.3W
Material Metal & Plastic
