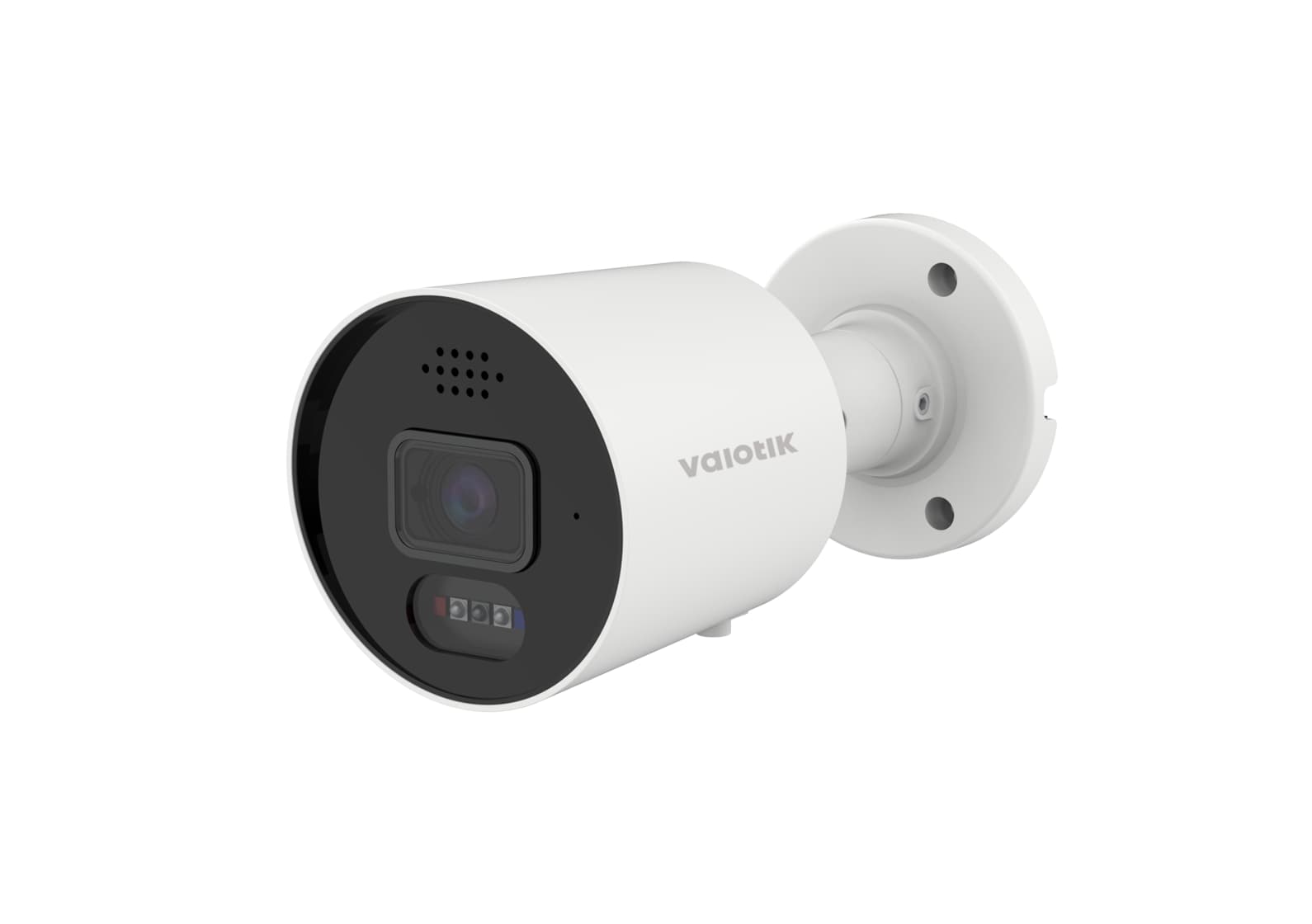

| Model | VA-IPCB8M-SY-36-A-LED-UL |
| Imaging Device | 1/2.8″
3840(H)x2160(V) |
| Effective Pixels
Min. Illumination |
8MP
Color 0.0071ux @ F1.0(AGC ON) ; B/W O lux @ IR ON |
| Lens Type/Focal Length
Max. Aperture Ratio |
Fixed M12 3.6mm |
| Angular Field of View | Horizontal: 85, Vertical: 46, Diagonal: 100 |
| Min. Object Distance | 2m |
| IR LED | 1pcs RL: 10pcs |
| Warm Light | 2pcs RL: 6pcs |
| Red Blue Light | 2(1 Red & 1 Blue) |
| IR Viewable Distance | Up to 25m |
| Warm Light Viewable Distance | Up to 20m |
| Wide Dynamic Range | Yes |
| Image Setting | Full Color Mode/Day & Night Mode/Schedule |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 – 1/20000s |
| On-Board Storage | Micro SD slot, up to 256GB |
| Audio | Built-in microphone & Speaker |
| Hardware Reset | Yes |
| Smart Feature Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Max. Resolution Video Quality Adjustment | 256Kbps — 16Mbps |
| Protocol Application Programming Interface | ONVIF (Profile S/G/T) |
| Operating Conditions | -35 to +60 C 95% |
| Ingress Protection | IP67 |
| Power | DC12V: max. 5.6W, PoE: max. 7.2W RL: DC12V: max. 7.1W, PoE: max. 8.7W |
| Material | Metal |
